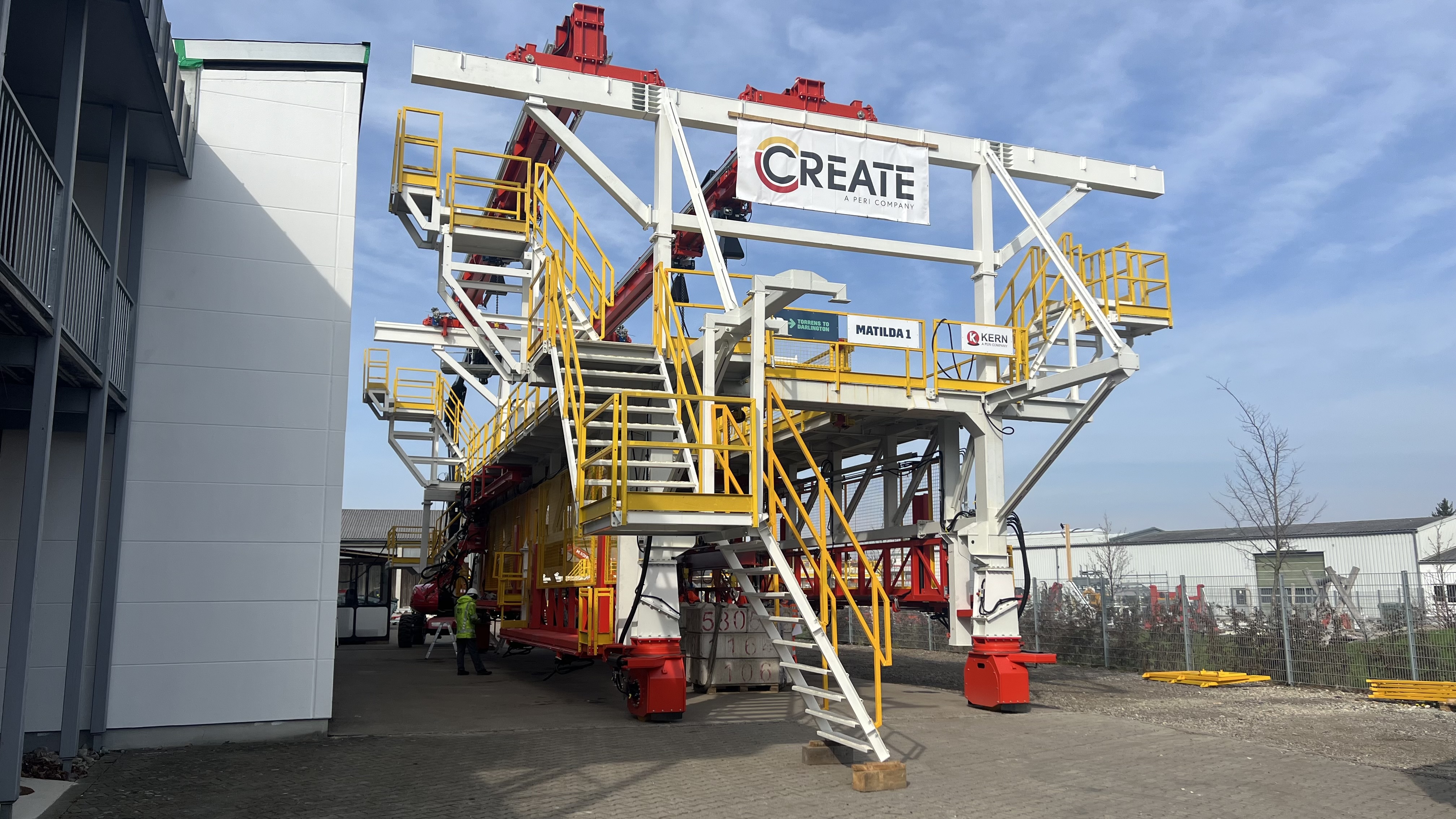

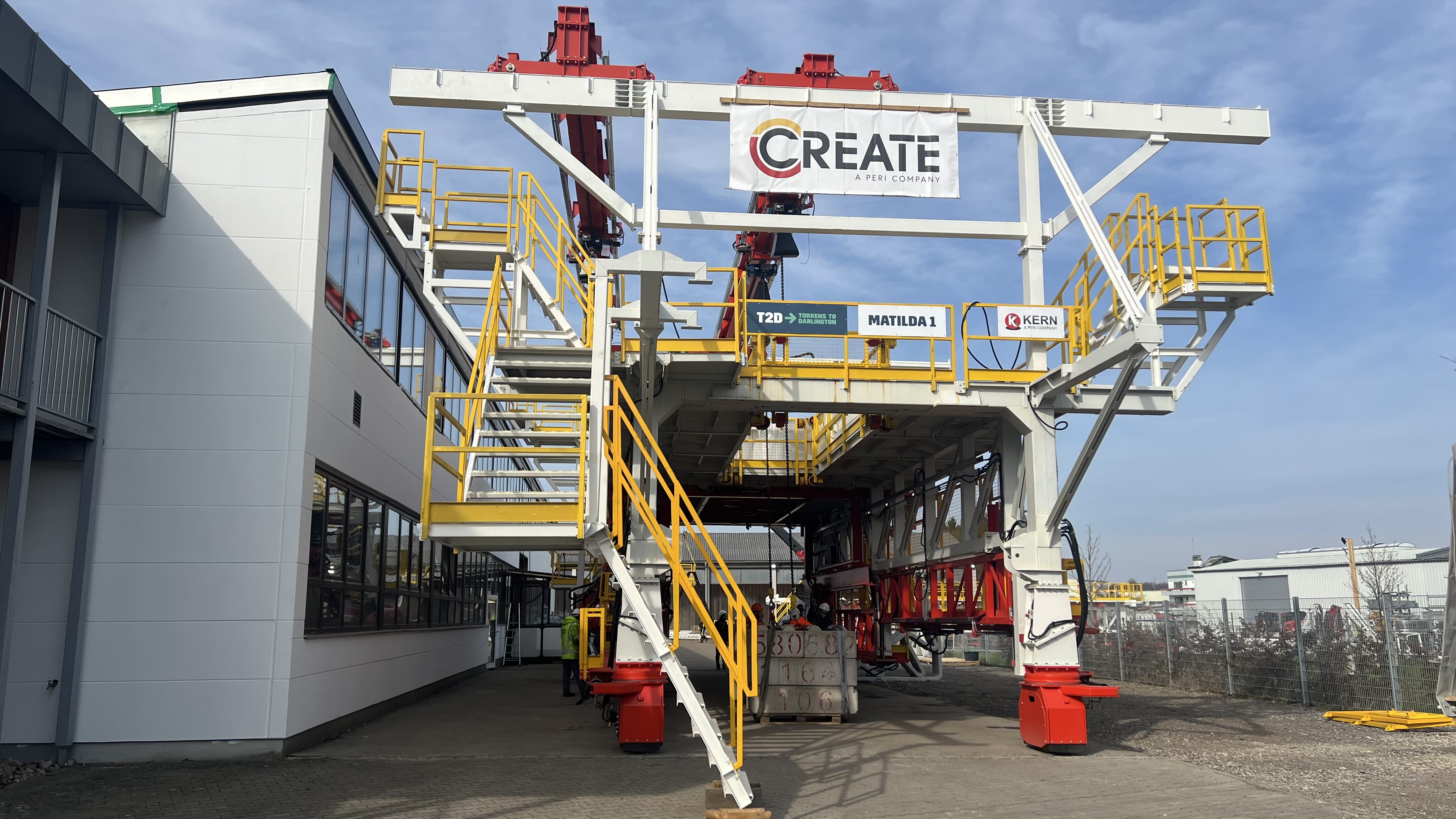

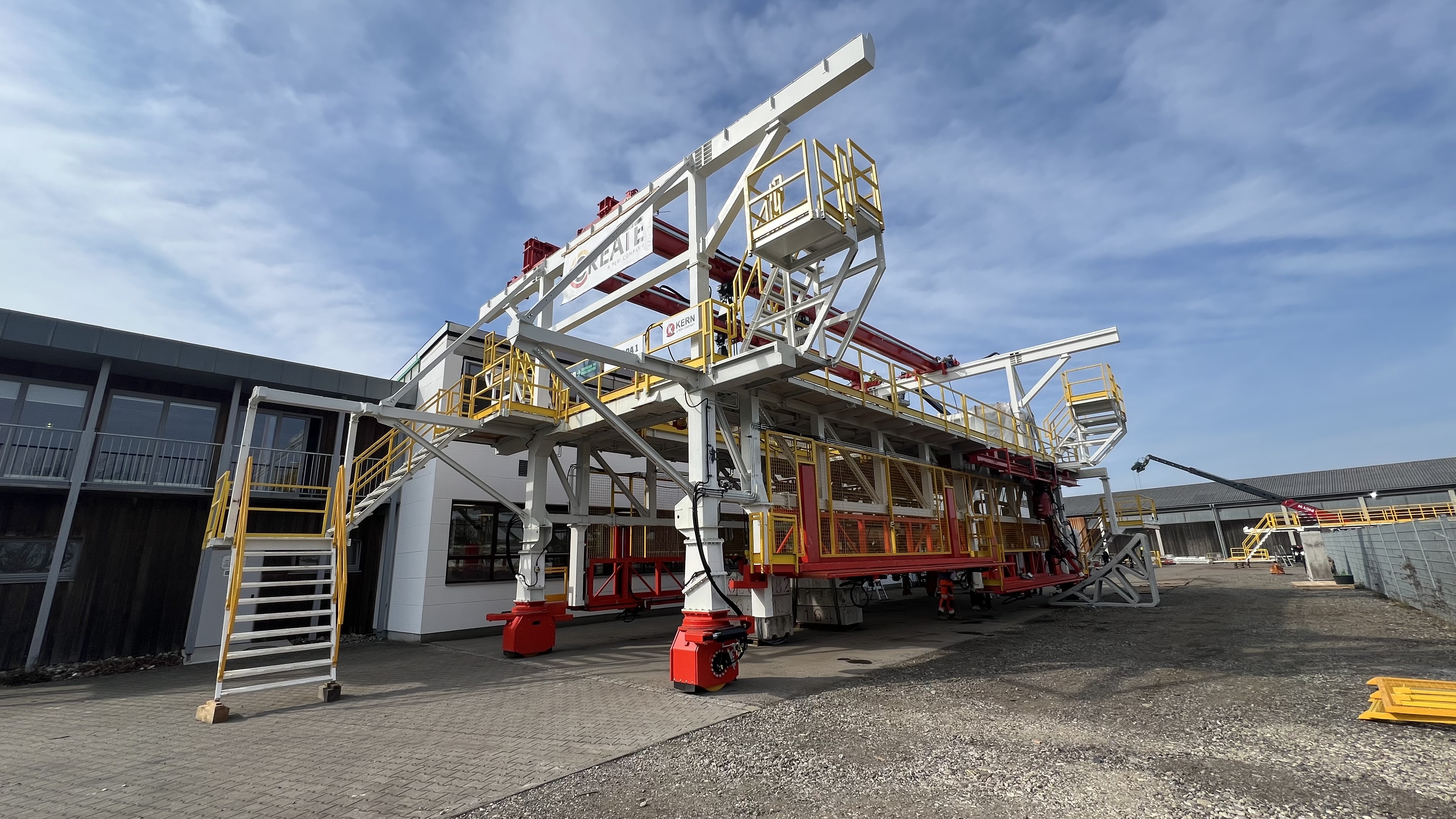

TUNNEL SERVICE INSTALLATION GANTRY

The Service Installation Gantry is designed to support the fast, safe and precise installation of tunnel services after excavation and lining works.

Thanks to its modular configuration, the gantry can be equipped for drilling, lifting, positioning and fixing operations, allowing operators to install brackets, anchors, cable trays, pipes, drainage systems and other technical provisions along the tunnel profile.

The system improves productivity, reduces manual handling and optimises logistics in confined tunnel environments.

Main Applications

• Drilling for anchors, brackets and supports
• Installation of cable trays, pipes and utilities
• Handling and positioning of service components
• Drainage and technical system installation
• Access to sidewalls, crown and invert areas
• Material storage and distribution inside the tunnel

Main Features

• Integrated drilling units
• Adjustable working platforms
• Electric or hydraulic lifting winches
• Material storage area / magazine
• Front and rear control stations
• 4WD drive units
• PLC-controlled travelling system
• Modular structure adaptable to project requirements
• Optional electric or battery-powered configuration

Benefits

• Faster service installation
• Improved operator safety
• Reduced manual handling
• Better tunnel logistics
• Accurate drilling and positioning
• Flexible configuration for different tunnel layouts
